JEN Double Sound (wah/fuzz)

made in Pescara/Italy, 1973

JEN Double Sound, 1973

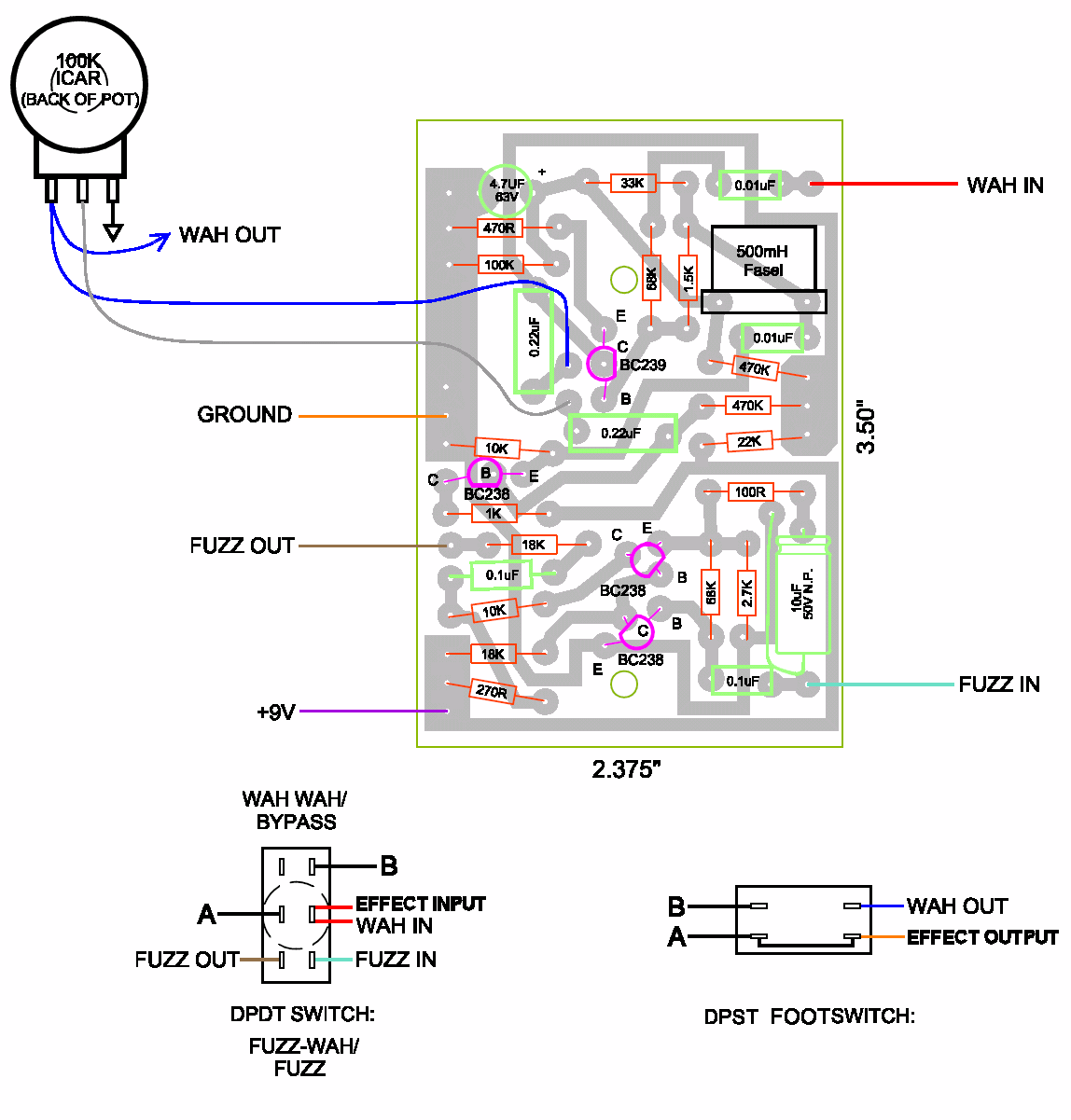

JEN Double Sound schematic
GIF-Datei [54.4 KB]
