Ibanez No.59 Standard Fuzz

produced: 1974-1980

list price 1974: 117 DM / 1979: 119 DM / 1980: 125 DM
availability: rare
collectibility: very high

re-issued: no


This fuzz pedal has two octave fuzz settings, one with scooped mids and one with a really thick mid-range. The unit was branded under (and is identical to) a variety of names, including Mica Fuzz, Bruno Fuzz Machine, Aria Diamond Fuzz and Fuzz Machine (unbranded).



Trivia:

The Ibanez Standard Fuzz is used by Dan Auerbach of the Black Keys (view article).

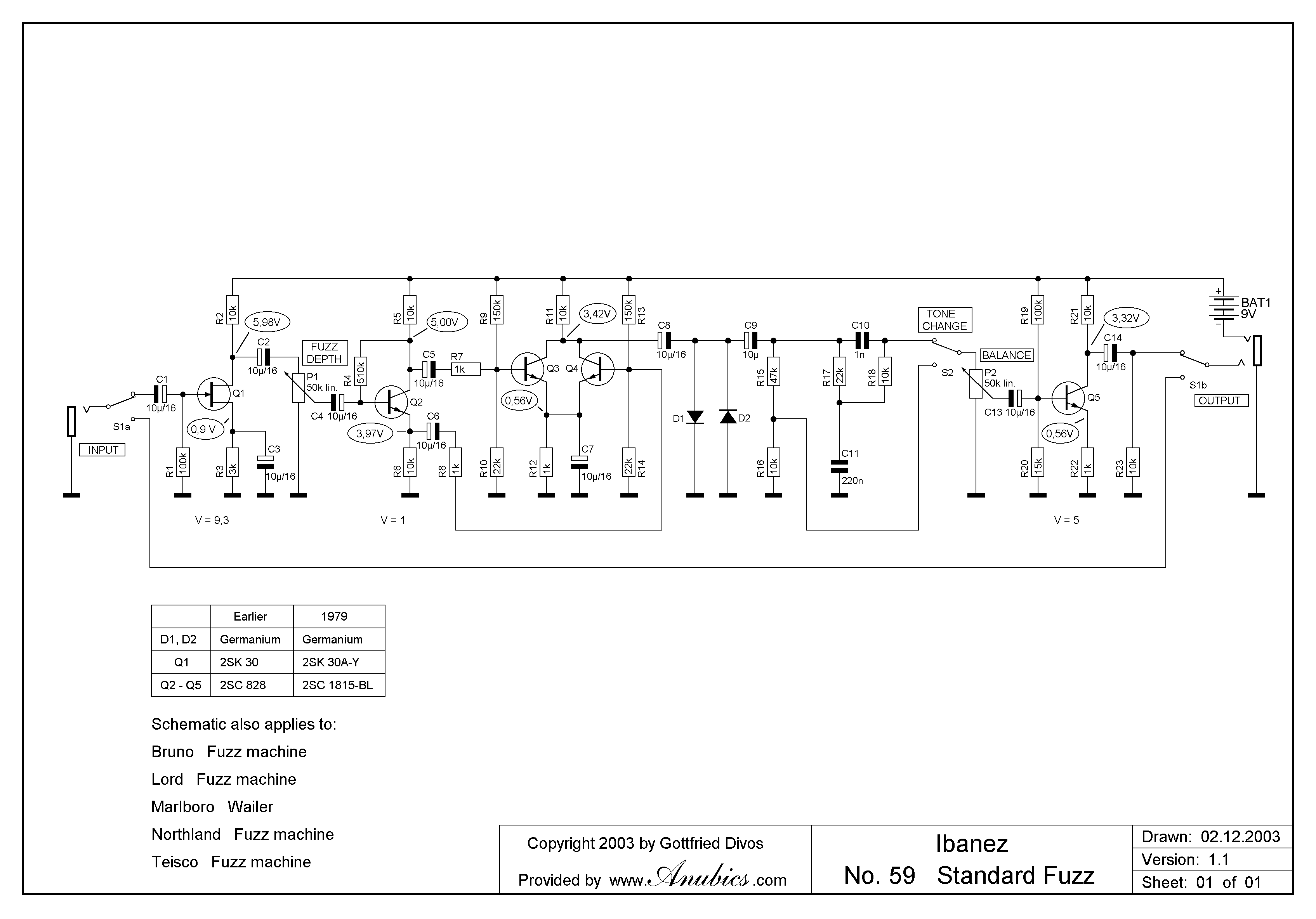

Ibanez No.59 Standard Fuzz schematic
GIF-Datei [81.8 KB]
