Ibanez No.84 Double Sound

produced: 1974-1984

list price 1974: 178 DM / 1979: 218 DM / 1984: 288 DM
availability: rare (v3), very rare (v1 and v2)
collectibility: high

re-issued: no

notes: three versions available
v1: 1974 - 1977 w/o LED, split pcb for Wah and Fuzz

v2: 1977 - 1978 w/o LED, single pcb for Wah and Fuzz
v3: 1979 - 1984 w/ LED, single pcb

The fuzz section has two octave fuzz settings, one with scooped mids and one with a really thick mid-range. The Fuzz section of the split board version is identical to the ephemeral and extremely sought after Ibanez No.83 Fuzz.

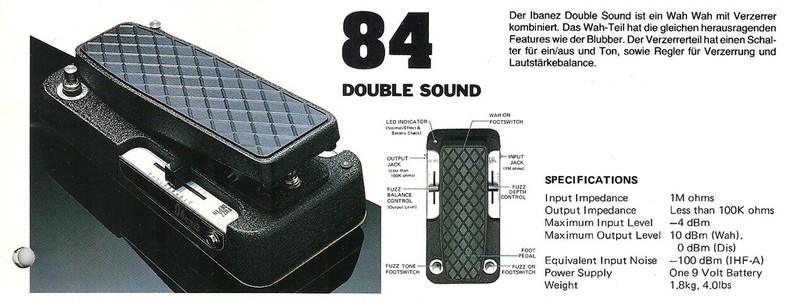

Ibanez Double Sound owner's manual 1978
PDF-Dokument [915.4 KB]
